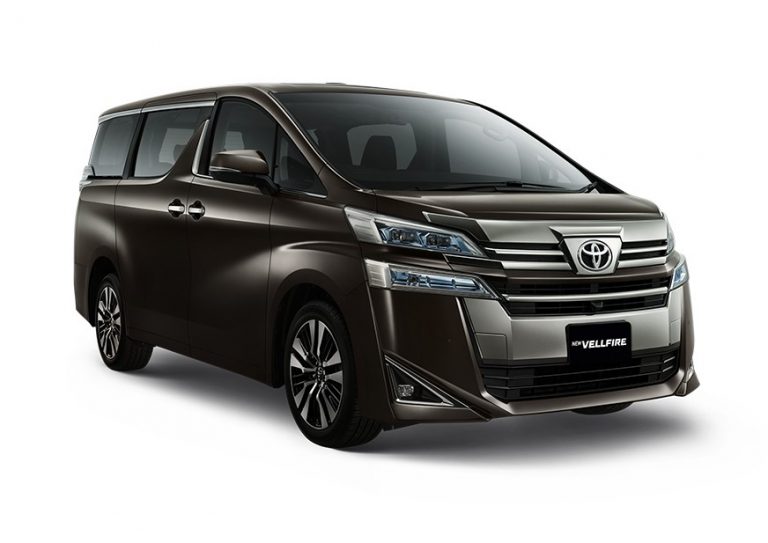

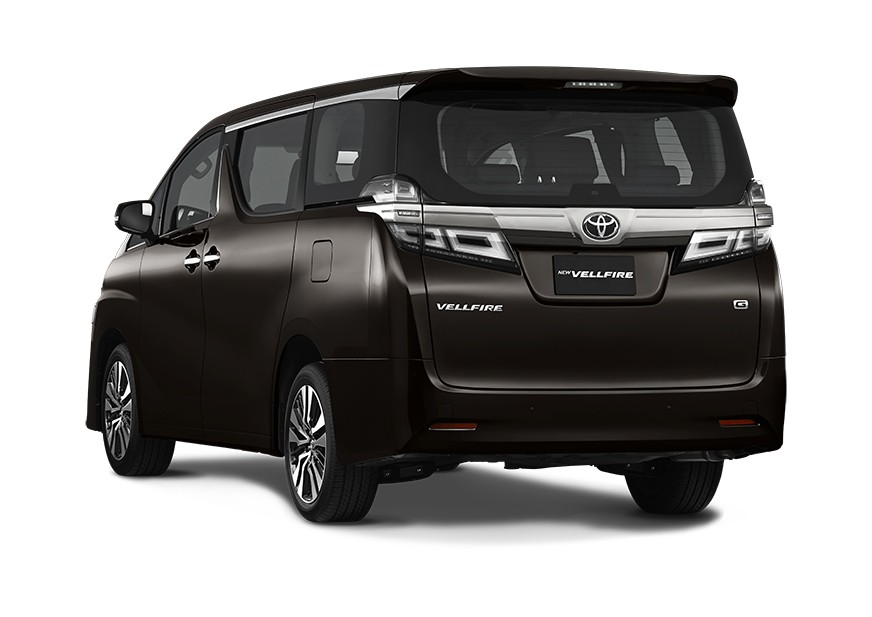

TOYOTA VELLFIRE

Overall Panjang / Length

4,930

Overall Lebar / Width

1,850

Overall Tinggi / Height

1,895

Jarak Poros Roda / Wheelbase

3,000

Jarak Pijak / Tread (Depan/Front)

1,575

Jarak Pijak / Tread (Belakang / Rear)

1,570

Jarak Terendah / Ground Clearance

160

Radius Putar / Turning Radius

–

Berat Kosong / Curb Weight

–

Transmisi / Transmission Type

CVT

Perbandingan Gigi / Gear Ratio 1st

2.517 – 0.390

Perbandingan Gigi / Gear Ratio 2nd

2.517 – 0.390

Perbandingan Gigi / Gear Ratio 3rd

2.517 – 0.390

Perbandingan Gigi / Gear Ratio 4th

2.517 – 0.390

Perbandingan Gigi / Gear Ratio 5th

2.517 – 0.390

Perbandingan Gigi / Gear Ratio 6th

2.517 – 0.390

Perbandingan Gigi / Gear Ratio 7th

–

Perbandingan Gigi Mundur / Gear Ratio Reverse

2.517 – 0.696

Perbandingan Gigi Akhir / Gear Ratio Final

5.791

Suspensi Depan / Front Suspension

MacPherson Strut with Torsion Bar

Suspensi Belakang / Rear Suspension

Double Wishbone with Torsion Bar

Rem Depan / Front Brake

Ventilated Disc

Rem Belakang / Rear Brake

Ventilated Disc

Sistem Rem Tambahan / Additional Brake System

–

Steering Gear

Rack and Pinion with EPS

Ukuran Ban / Tires Size

235/50/R18

Seri Mesin / Machine Serial

2AR-FE

Tipe Mesin / Engine Type

2AR-FE, In-Line 4 Cylinders, 16-valve, DOHC, Dual VVT-i

Isi Silinder / Displacement (Cc)

2,494

Diameter X Langkah / Bore X Stroke (Mm)

90.0 x 98.0

Daya Maksimum / Maximum Output (Ps/Rpm)

180/6,000

Torsi Maksimum / Maximum Torque (Kgm/Rpm)

23.9/4,100

Sistem Pemasukan Bahan Bakar / Fuel System

EFI

Bahan Bakar / Fuel

–

Kapasitas Tangki / Fuel Capacity (Liter)

75

Steering (Power Steering)

–
